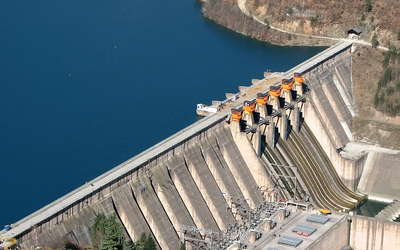

Hydroelectric power plants
We offer complex solutions for building and delivering technologies for small and medium-size hydroelectric power plants. We deliver all major types of turbines, synchronous and asynchronous generators.
Selection and evaluation of location
Concept of technology and its evaluation
Feasibility study
Draft and production of project documentation
Elaboration of an energy audit
Connectability study
Elaboration of documents for building permit application
Elaboration of documents for loan application
Elaboration and provision of documents for connection to the grid and obtaining a licence for selling electric power
Delivery and installation of a FV power station
Connection of the power station to the distribution network
Securing the entire object
Subsequent controlling, monitoring and maintenance of the hydro-park
Operation of the hydro-park - potential remote control
Technology
Propeller-type turbine - Kaplan turbine, fixed blade adjustment
Output: 3kW ~ 5,000kW
Head: 2m ~ 25m
Flow: + 0.2 m3/s
Kaplan turbine - horizontal, vertical overpressure turbine
Output: 3kW ~ 5,000kW
Head: 2m ~ 50m
Flow: + 0.2 m3/s

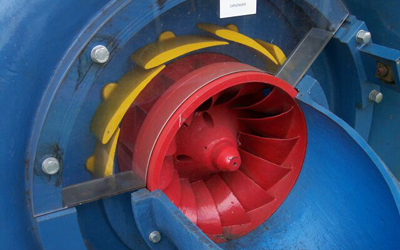

Francis turbine - horizontal, vertical overpressure turbine
Output: 50kW ~ 5,000kW
Head: 20m ~ 150m
Flow: + 0.3 m3/s
Asynchronous (induction) generator
Output: 1kW ~ 5,000kW
Voltage: AC 220V ~ 6.6kV
Frequency: 50Hz, 60Hz
Phase: 3
Synchronous generator
Output: 1kW ~ 5,000kW
Voltage: AC 220V ~ 6.6kV
Frequency: 50Hz, 60Hz
Phase: 3
